1
|
model
|
JD6090
|
|
2
|
X,Y working area
|
600×900mm
|
|
3
|
Z Max working area
|
>100mm
|
|
4
|
Table size
|
720x1150mm
|
|
5
|
Working delicacy
|
0.05mm
|
|
6
|
X,Y,Z repositioning Positioning Accuracy
|
0.05mm
|
|
7
|
Frame
|
Steel structure
|
|
8
|
X,Y, Z Structure
|
Round orbit (Optional: change Y axis to square orbit), Ball screw(Y axis double nuts)
|
|
9
|
Max.Speed
|
4m~5.5m/min
|
|
10
|
Spindle Power Motor
|
1.5Kw water cooling spindle
(optional: change to 2.2KW)
|
|
11
|
Power (not include the spindle)
|
300w
|
|
12
|
Spindle Speed
|
0-24000RPM
|
|
13
|
Drive Motors
|
Stepper system
|
|
14
|
Working Voltage
|
AC220V/50Hz
|
|
15
|
Command Language
|
G code
|
|
16
|
Operating System
|
Computer control (Optional: DSP black handle control system with USB interface)
|
|
17
|
Running Environment
|
Temperature: 0 ~ 45
Relative humidity: 30% ~ 75%
|
|
18
|
Surrounding for software
|
Windows98/2000/xp
|
|
19
|

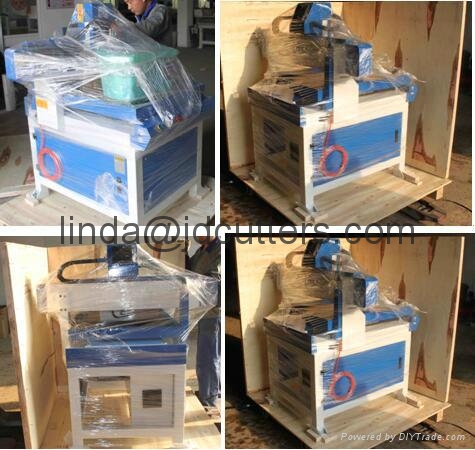

Packaging
|
plywood
|
|
20
|
Dimension of packing
|
1.4x1.13x1.45m ( L x W x H)
|
Field of application:
Advertising industry, seal industry, craft and gift, art mould, wood working, mould etc. applicable material including on arylic, double-color board, PVC, ABS board, stone, imitation stone, metal, Aluminum Mold etc.
l Woodwork industry: sewing machine table, machine cabinet panel, sporting equipment, wooden door etc.
l Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.
l Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.
l Mould industry: architecture, Gilt membrane, electric machinery, High frequency mold, moulding on shoes, badge, embossed mould, biscuit, candy, chocolate mould
l Stamp industry: it is easy and convinent to seal on various materials such as ox horn, plastic, organic board, wood etc.
Performance:
Ø Our JD6090L adopts the mode of saving the intermittence. Memory to insure the processing point when the blade is broken or postpone situation.
Ø matching Germany producing double ball screw nut and imported the bearing liner.
Ø Specific saving mode of different points. It is very convenient for various scutcheon processing.
Ø Gantry mode movement is more durable without distortion by long use and the positioning accuracy is much better.
Ø The large power cutting spindle does not only increase the fineness of engraving the breast card without screw and the under base is more flat and smooth.
