1
|
model
|
JD1325A
|
JD1325B
|
|
2
|
X,Y working area
|
1300x2500mm
|
1300x2500mm
|
|
3
|
Z Max working area
|
150mm
|
200mm
|
|
4
|
Table size
|
1400x3000mm
|
1400x3000mm
|
|
5
|
Working-holding
|
mechanical clamps
|
mechanical clamps
|
|
6
|
Working delicacy
|
0.05mm
|
0.05mm
|
|
7
|
X,Y,Z repositioning Positioning Accuracy
|
0.05mm
|
0.05mm
|
|
8
|
Frame
|
groove steel structure
|
groove steel structure
|
|
9
|
X,Y,Z Structure
|
Three-axis round orbit, Gear-wheel driver (Y axis double nuts)
|
Three-axis square orbit, Gear-wheel driver (Y axis double nuts)
|
|
10
|
Driver
|
MD542 Drivers(17meters)
|
MD2278/1182 Drivers( 35-45meters)
|
|
11
|
Spindle Power Motor
|
2.2KW water cooling spindle.
(optional: 3KW,4.5KW)
|
3KW water cooling spindle. (optional: 4.5KW)
|
|
12
|
Working Voltage
|
AC220V/50Hz
|
AC220V/50Hz; AC380V
|
|
13
|
Power (not include the spindle)
|
1500W
|
|
14
|
Spindle Speed
|
0-24000RPM
|
|
15
|
Drive Motors
|
Stepper system ( optional: servo system)
|
|
16
|
Command Language
|
G cord*.u00*.mmg*plt
|
|
17
|
Operating System
|
computer control (optional: DSP black handle control system( with USB interface）
|
|
18
|
Running Environment
|
Temperature: 0 ~ 45
Relative humidity: 30% ~ 75%
|
|
19
|
Surrounding for software
|
Windows98/2000/xp
|
|
20
|
Cutters
|
22 pcs(include 3D cutter and milling bottom cutter)
|
|
21
|
Other optional parts
|
Vacuum system
|
|
Dust collector
|
Field of application:
Woodworking,Advertising industry, seal industry, craft and gift, art mould, mould etc.
Applicable material: wood, arylic, double-color board, PVC, EVA, ABS board, stone, imitation stone, metal, Aluminum Mold etc.
Major applicationd fields: furniture, furniture decoration, woodworking decoration, musical instrument, wooden handicraft etc.

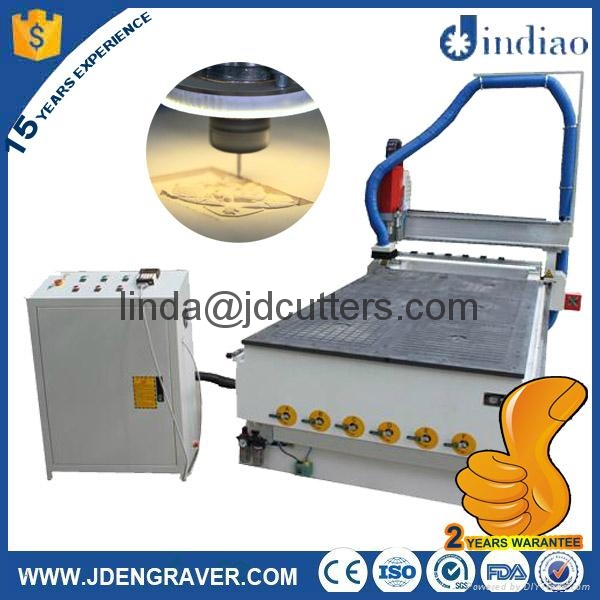

Performance:
Ø lengthen the X and Y axis, can be used for large scale material processing. Adopted international leading parts, cost performance is high.
Ø They are fitted with steady domestic-made water-coolant spindles. High powered, high rigidity. Well adapted to engrave and cut on Density board, solid wood panel, also engrave 3D archaistic furniture.
Ø vacuum table we allow for both Mechanical and Vacuum fixturing. What does this mean? If you are processing sheets of material such as MDF, Melamine, Plastic, Foam or any other sheet like material, vacuum hold-down is an excellent solution. If you are processing small or irregular shaped products, heavy material, then you may want to utilize mechanical clamps.
Ø It uses the double motors to drive the machine and uses the double axis to transmit the machine smoothly. So it is guaranteed not to out of shape and shake when it works for a long time.
Ø JD1325B is upgraded to meet the requirements of users. It will be faster and more efficient. The traveling speed can reach 35m/m.
